Electrical Densified Laminated Wood
Electrical densified laminated wood is a high-performance structural insulation material used extensively in power transformer and heavy electrical equipment manufacturing. Produced by bonding hardwood veneers under high pressure and temperature using insulating resins, the densification process creates a material with exceptional mechanical strength, stable dielectric properties, and excellent oil compatibility — critical requirements for transformer construction.
ACC Insulations manufactures premium electrical densified laminated wood in India, supplying OEMs across the power, switchgear, and electrical equipment industries. Custom board sizes, machined components, and beams are available.
What Is Electrical Densified Laminated Wood?
Electrical densified laminated wood (also known as DLW or transformer laminated wood) is manufactured by stacking and bonding layers of hardwood veneer with insulating resin binders under controlled high-pressure and high-temperature conditions. The densification process compresses the wood fibres, significantly increasing the material's density, mechanical strength, and dimensional stability compared to natural wood.
The result is a rigid, oil-compatible insulation board that maintains its structural integrity under the mechanical loads, vibration, and thermal cycling conditions found inside power transformers — making it the material of choice for structural insulation components.
Product Specifications
| Electrical Densified Laminated Wood — Standard Dimensions | |
|---|---|
| Thickness Range (mm) | 6 to 150 |
| Rectangular Boards L × W (mm) | 1220 × 2440 | 1525 × 3050 | 1860 × 3660 |
| Square Boards L × W (mm) | 1220 × 1220 | 1525 × 1525 | 1830 × 1830 |
| Long Beam L × W (mm) | 600 × 3750 |
| Standards | IEC 60893, IS 1322, Customer-specific requirements |
| Custom Fabrication | Available — boards, strips, machined profiles |
Key Properties
- High mechanical strength — withstands clamping loads and short-circuit forces inside transformers
- Excellent dielectric strength — provides reliable electrical isolation under high-voltage conditions
- Oil compatibility — absorbs transformer oil during vacuum drying, improving dielectric performance
- Low moisture absorption — maintains stable electrical and mechanical properties across humid environments
- Long-term dimensional stability — resists warping and deformation under sustained load
- Moderate specific gravity — easier to handle and machine than metallic alternatives
- Easy vacuum drying — compatible with transformer oil impregnation processes
Applications of Electrical Densified Laminated Wood
Electrical laminated wood is engineered for applications where mechanical load-bearing and electrical insulation must work together:

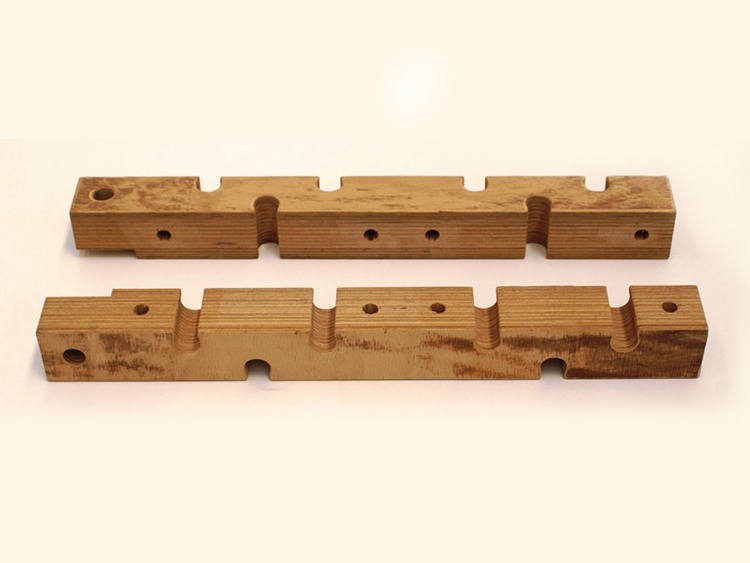

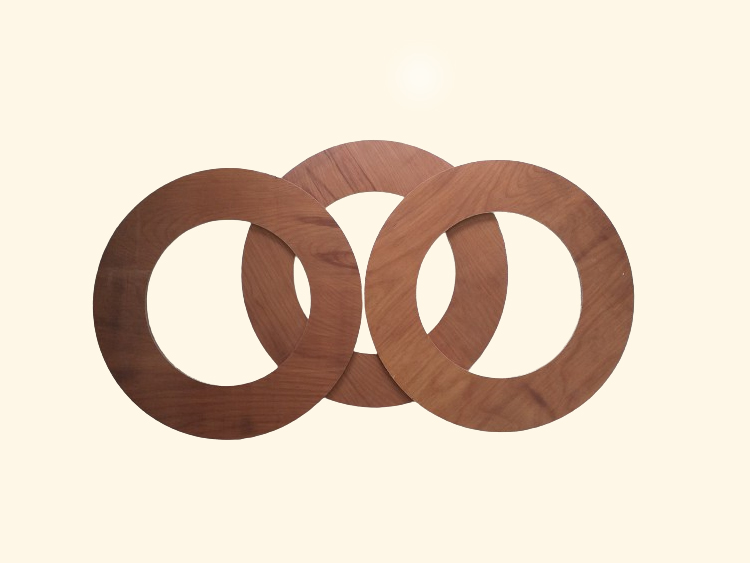

- Transformer clamping rings and pressure plates — to clamp and compress transformer windings
- Insulation supports and spacers — maintaining safe clearances between live parts
- Core clamping components — structural frames surrounding the transformer core
- High-voltage equipment insulation frames — providing both structural support and dielectric isolation
- Switchgear and bushing supports — in high-voltage switching equipment
Importance in Transformer Construction
Inside a power transformer, electrical densified laminated wood serves a dual role that no single alternative material can easily replicate: it must simultaneously carry mechanical loads — from the weight of windings, the compression of clamping assemblies, and short-circuit electromagnetic forces — while providing high-quality electrical insulation.
- Structural rigidity — maintains the geometry of winding assemblies over the transformer's service life
- Electrical isolation — prevents current leakage between HV and LV windings and core structures
- Vibration resistance — dampens mechanical stress from magnetic flux cycling and external disturbances
- Oil-compatible aging — performs reliably in oil-immersed environments for decades
Manufacturing Process at ACC Insulations
ACC Insulations produces electrical densified laminated wood through a controlled multi-stage process that ensures consistent density, bonding integrity, and dielectric performance across every board:
- Selection of high-quality hardwood veneers with uniform grain structure
- Application of insulating resin binders between veneer layers
- High-pressure hot pressing with precise temperature and dwell-time control
- Controlled curing and post-press stabilisation
- Dimensional machining and quality inspection per IEC and customer standards
Standards and Compliance
- IEC 60893 — Insulating boards of thermosetting resin and industrial laminated materials
- IS 1322 — Indian Standard for laminated boards used in electrical equipment
- Customer-specific transformer design requirements accepted
Densified Laminated Wood vs Pressboard
| Property | Densified Laminated Wood | Transformer Pressboard |
|---|---|---|
| Mechanical Strength | Very High | Moderate |
| Dielectric Strength | High (especially oil-impregnated) | High (oil-impregnated) |
| Typical Use | Structural / load-bearing insulation | Thin, non-structural insulation layers |
| Available Thickness | 6 mm – 150 mm | 0.5 mm – 38 mm |
| Machinability | Excellent — beams, profiles, rings | Limited to flat sheet |
Why Choose ACC Insulations?
- Consistent material density and bonding quality across all batches
- Custom fabrication — boards, beams, machined parts, and complex profiles
- Reliable supply chain for OEM transformer manufacturers
- IEC and IS standards compliance with full traceability
- Dedicated technical support for material selection and application guidance
Industries Served
- Power and distribution transformer manufacturing
- Heavy electrical equipment manufacturing
- Switchgear and high-voltage apparatus production
- Industrial power systems and utilities
Engineering Tools Suite
Calculate dimensional stability, load-bearing capacities, and dielectric margins for your densified laminated wood applications using our interactive insulation tools.
Need More Help?
Frequently Asked Questions
Electrical densified laminated wood is used as structural insulation in power transformers. Typical applications include clamping rings, pressure plates, insulation supports, core clamps, and high-voltage equipment frames where both mechanical strength and electrical insulation are required simultaneously.
Yes. Electrical densified laminated wood has excellent oil compatibility. It absorbs transformer oil during vacuum drying processes, which further improves its dielectric performance and ensures reliable operation in oil-immersed transformer environments over the long term.
Yes. ACC Insulations offers custom-machined and fabricated densified laminated wood components cut to precise dimensional requirements — including boards, beams, strips, clamping rings, and complex profiles for transformer manufacturing.
Densified laminated wood offers significantly higher mechanical strength and rigidity compared to pressboard, making it the preferred choice for load-bearing structural components like clamping rings and supports. Pressboard is typically used for thinner, non-structural insulation layers within the winding assembly.
Our electrical densified laminated wood is manufactured in compliance with IEC 60893 and IS 1322 standards. We can also produce to customer-specific transformer design requirements upon request.
