Insulation for Solar Inverters
Solar inverters are the critical bridge in photovoltaic systems, converting fluctuating DC power from solar panels into grid-ready AC power. In utility-scale and commercial PV systems, these inverters manage extreme DC string voltages (upwards of 1000V to 1500V DC), rapid switching frequencies, and massive thermal loads.
To guarantee a 25+ year operational lifespan in harsh outdoor environments, the internal components require specialized, high-performance electrical insulation. ACC Insulations is a dedicated manufacturer and supplier of precision-engineered insulation components designed specifically for the rigorous demands of power conversion systems (PCS) and solar inverters.
Why Solar Inverters Demand Advanced Insulation
Standard industrial insulation often fails under the combined stress of high DC voltage tracking and continuous thermal cycling. Our engineered materials ensure flawless phase separation, structural integrity, and superior heat dissipation within compact inverter housings.
| Material Specifications | |
|---|---|
| Material Types | Fibre Glass Epoxy (FR4, G10, G11), Flexible Aramid Laminates, Polyimide Films |
| Thermal Class | Class F (155°C) to Class C (220°C+) |
| Voltage Rating | Optimized for 1000V / 1500V DC Systems |
| Form Factor | CNC Machined Sheets, Phase Barriers, Custom Busbar Supports |
| Key Resistance | High CTI (Comparative Tracking Index), Arc Resistance, Low Moisture Absorption |
Key Materials Supplied for Solar Applications
We manufacture and fabricate a broad range of insulation materials tailored for renewable power electronics:

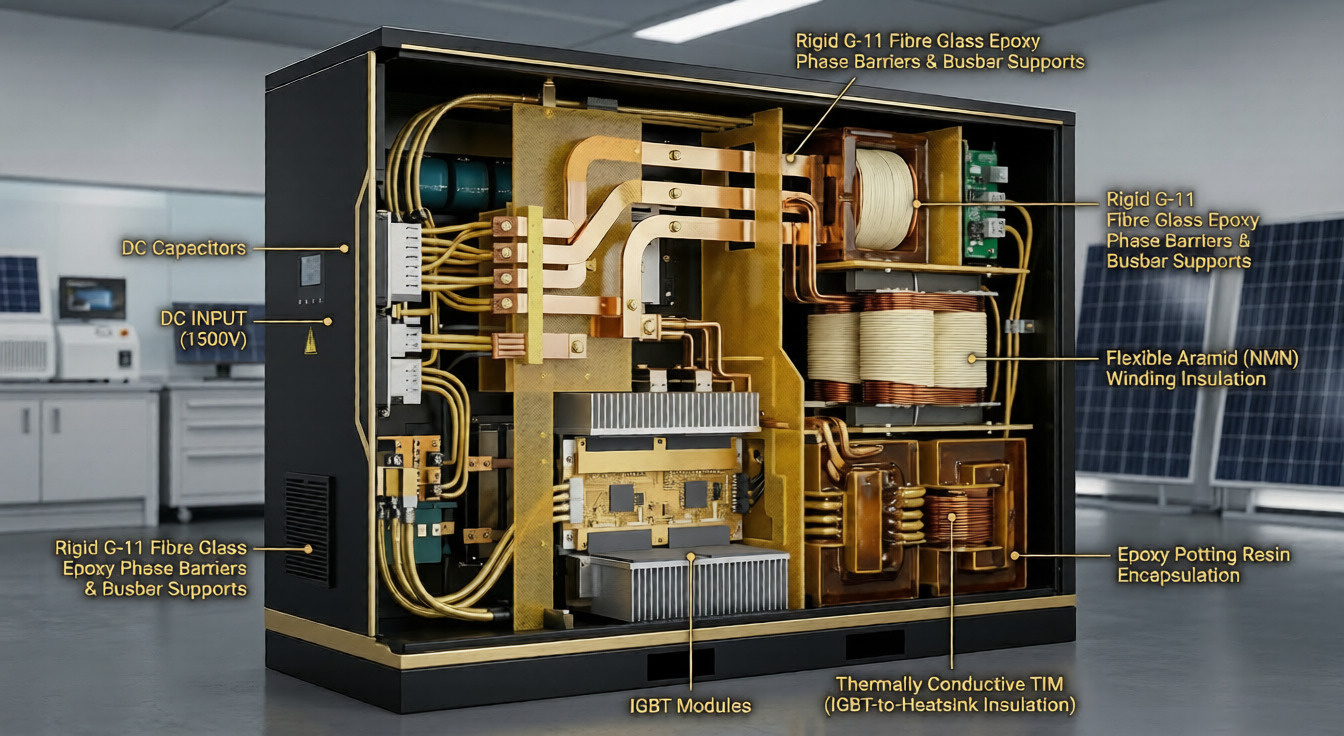

1. Fibre Glass Epoxy Components (FR4, G10, G11)
Our core strength lies in precision-machined epoxy laminates. These materials
possess
exceptionally high mechanical strength and dielectric properties. We use them to
manufacture rigid phase barriers, mounting boards for heavy chokes, and structural
busbar supports that isolate high-current paths inside the inverter cabinet.
2. Flexible Insulation Laminates
For the high-frequency isolation transformers and filtering chokes inside the
inverter,
we supply advanced flexible laminates (such as NMN or Aramid-based papers). These
provide vital layer-to-layer winding insulation that withstands continuous thermal
cycling without becoming brittle.
3. Custom Insulating Enclosures and Shields
Using high-grade FRP and composite sheets, we fabricate internal arc shields and
protective partitioning to isolate sensitive low-voltage control electronics from
the
high-power AC/DC conversion stages.
Crucial Features for PV Systems
- High Comparative Tracking Index (CTI): Prevents electrical tracking caused by dust and humidity over time.
- Excellent Thermal Stability: Resists degradation under continuous heat generated by IGBTs and switching components.
- Flame Retardant (UL94 V-0): Ensures the highest level of safety within expensive capital equipment.
- Dimensional Stability: Will not warp or shrink, ensuring tight tolerances are maintained in compact modern inverters.
- Moisture & Chemical Resistance: Protects against condensation typical in outdoor utility-scale solar farms.
Manufacturing Capabilities
Solar inverter designs are becoming increasingly compact, requiring highly complex, custom-shaped insulation pieces. ACC Insulations operates advanced fabrication facilities to meet this demand:
- State-of-the-art CNC routing and machining centers.
- Precision milling, drilling, and edge-finishing.
- Ability to produce custom barriers and supports directly from your CAD engineering drawings.
- Tight tolerance control for seamless integration into automated assembly lines.
Target Applications in the Solar Industry
- Utility-Scale Central Inverters
- Commercial & Industrial (C&I) String Inverters
- Microinverters and Power Optimizers
- High-Voltage DC PV Combiner Boxes
- Battery Energy Storage Systems (BESS) accompanying solar setups
Why Choose ACC Insulations?
As a specialized manufacturer, ACC Insulations guarantees that every piece of insulation we supply is electrically safe, mechanically robust, and dimensionally accurate. We understand the high stakes of renewable energy infrastructure and deliver products that comply with strict global IEC and IS electrical standards, ensuring your inverters perform reliably for decades.
Engineering Tools Suite
Calculate exact dielectric tolerances, thermal stability margins, and thickness requirements for your custom solar inverter components using our interactive tools.
Frequently Asked Questions
High-dielectric materials like G-11 epoxy glass or specialized Polyimide films are ideal for 1500V DC systems due to their exceptional tracking resistance (CTI) and superior thermal stability under continuous heavy loads.
Yes, we utilize advanced CNC machining centers to manufacture custom insulating phase barriers and busbar supports that perfectly fit the exact, often restricted, dimensions of modern inverter housings.
While the insulation is housed inside the inverter enclosure, our epoxy and composite materials offer excellent resistance to ambient moisture, humidity, and the severe temperature fluctuations typical of outdoor solar farms.
Absolutely. Materials like FR4 and specialized G-11 laminates are engineered to be highly flame retardant, generally meeting the strict UL94 V-0 standard to ensure equipment safety.
